Product Details
Product parameter
| Operating Speed |
0.1mm-1m/s(Related with actuator forms) |
| Operating Frequency |
Mechanical 60 cycles/min; Electrical 15 cycles/min |
| Insulation Resistance |
≥100ΜΩ (500VDC) |
| Contact resistance |
<100mΩ (Initial value) |
| Voltage Resistance |
AC800-1000V 50/60HZ 1Minthe |
| Vibration Resistance |
10-55HZ 1.5mm Double amplitude |
| Ambient Temper |
Used-40°~+125° |
| Storage Humidity |
85% RH Max |
| Rating |
3A 125/250VAC 1A 125/250VAC 0.5A 125/250VAC |
| Service Life |
Mechanical ≥2,000,000/Cycles Electrical >50,000/Cycles |
| Safety approvals |
UL CUL TUV CQC |

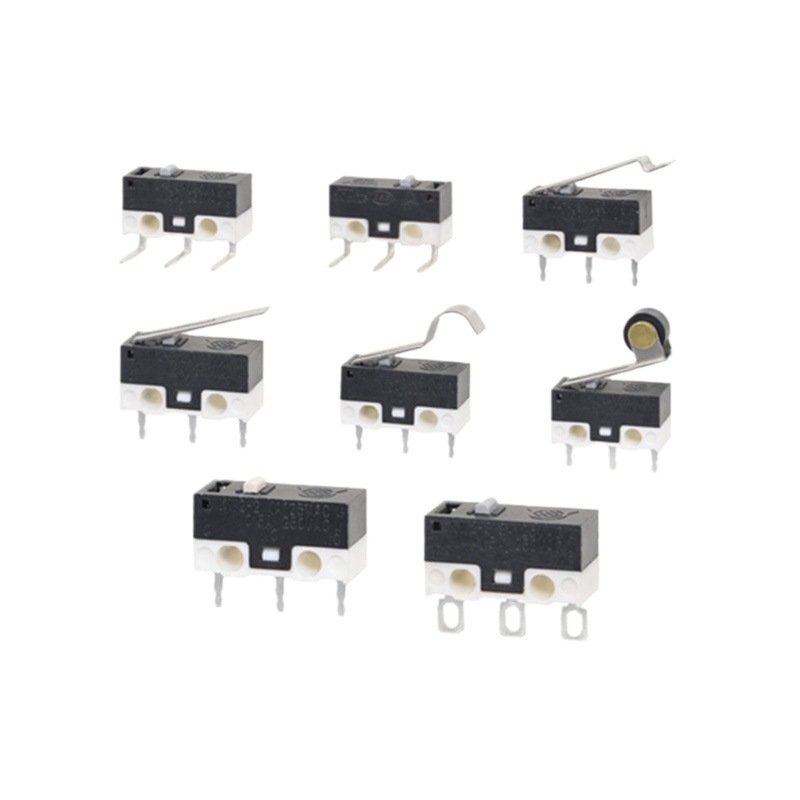

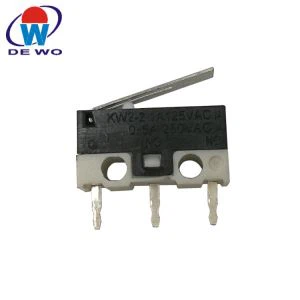

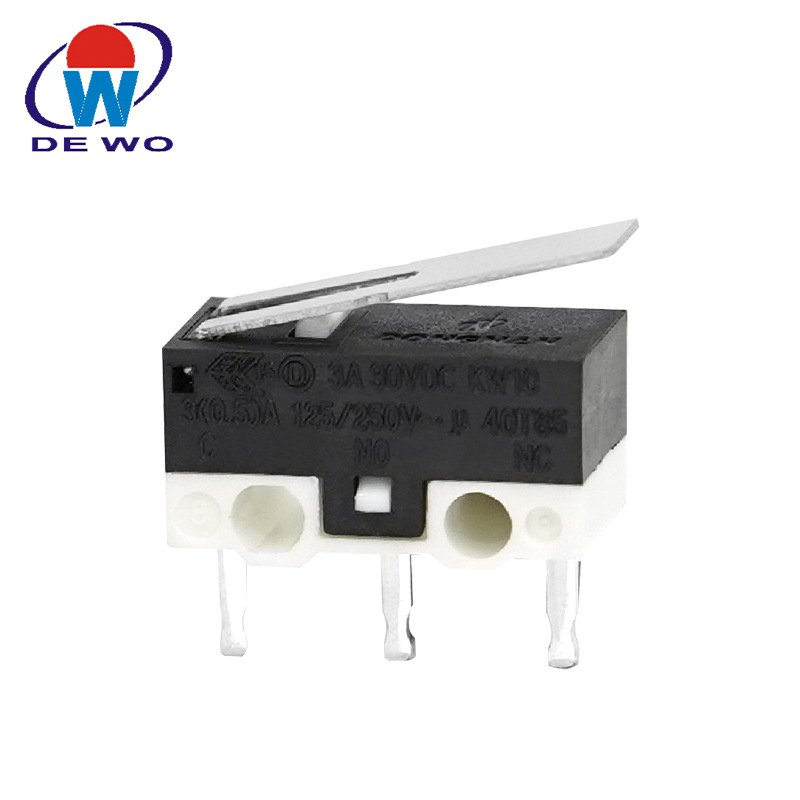

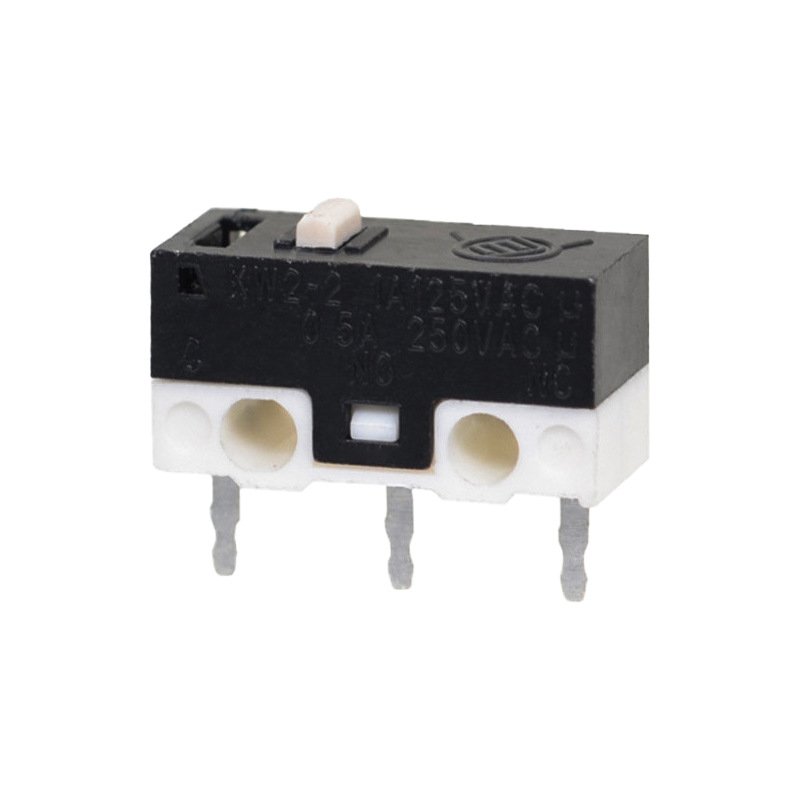

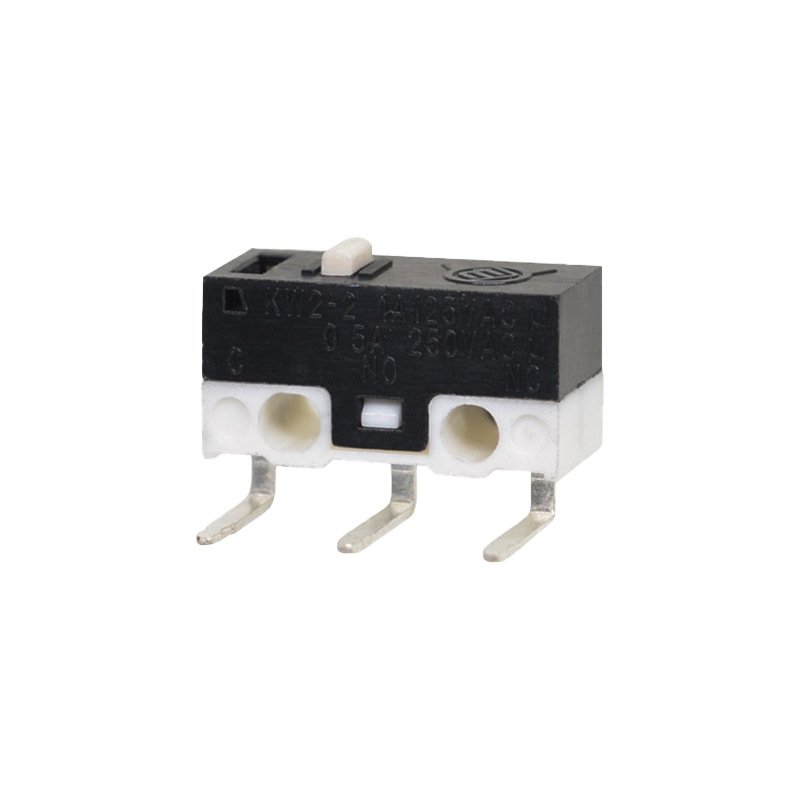

Mini micro switches are commonly used in various applications due to their small size, reliability, and versatile functionality. Some key advantages of mini micro switches include:
1. Compact Size
- Space-Saving: The small form factor allows mini micro switches to be used in tight spaces where regular switches might not fit. This is especially useful in portable electronics, appliances, and equipment with limited room.
2. High Reliability
- Durability: Micro switches are known for their long lifespan and ability to operate millions of cycles with high reliability. They are designed to withstand mechanical stress and are typically more durable than other types of switches.
- Precise Action: Mini micro switches offer precise and consistent actuation, ensuring that the device operates correctly every time.
3. Low Power Consumption
- Energy-Efficient: Micro switches typically use very little power, making them ideal for battery-powered devices or energy-efficient applications.
4. Fast Response Time
- Quick Switching: These switches are engineered for quick response and fast actuation, which is crucial in safety mechanisms, automation, and other time-sensitive applications.
5. Variety of Mounting Options
- Flexible Installation: Mini micro switches come with different mounting options (such as through-hole or surface mount), making them easy to integrate into various devices and systems.
